Undo/Redo in Java using Protostuff serialization and binary diffs

Many applications need Undo/Redo functionality. Commonly used implementation patterns are:

  • Command Pattern
  • Memento Pattern (state snapshots)
  • State diffs

When using the Command Pattern one would encapsulate both the change logic and its reversal in command objects. Undo/Redo is implemented by managing stacks of those objects. This approach has its limitations, for example for changes that are unidirectional in nature, like anything involving randomness, encryption, etc.

State snapshots save the full state of the edited data as object graphs or some representation thereof. This is also called the Memento Pattern. It often uses serialization and typically compression of the object graph to reduce memory use and ensure immutable snapshots that can also be stored out-of-process, if desired.

State diffs are based on the idea of State snapshots, but only store the difference between states. This can vastly reduce memory consumption of your Undo/Redo history. It is based on diffing algorithms that compute the delta between two states (or their memento) and allow Undo/Redo by applying the deltas as patches against a given state. A disadvantage is that jumping to a state involves a whole chain of patch applications. But it is a good approach when the user mainly navigates the Undo/Redo history sequentially.

A highly reusable implementation of Undo/Redo using State Diffs is available at my github account: https://github.com/odoepner/diffing-history

It uses the following Open Source libraries:

  • Protostuff for object graph serialization using runtime schema
  • JavaxDelta for binary diffing and patching

It provides the following features:

  • Unlimited Undo and Redo
  • Can handle any type of Java objects
  • Low memory footprint
  • Straightforward type-safe API
  • Supports stack size listeners
  • Gzip compression for the serialized current state

It is Open Source under the Unlicense.

Usage

The main API is the History interface.
Create an instance of DiffingHistory to get started.
The DiffingHistoryTest calls all History methods and illustrates the API.

Free long-term-support OpenJDK 8 for Windows with Webstart

Now that Oracle Java 8 is no longer free-of-charge for commercial use, and Oracle is dropping Webstart, you might be looking for an alternative way to let your users still execute your Webstart based Java applications.

There are two community based projects that provide OpenJDK builds for various platforms for free and who have committed to providing security update builds for an extended time:

The Java 8 MSI installer from ojdkbuild has options for installing OpenJFX, Webstart (the Open Source implementation from IcedTea-web) and an Update notifier.

The AdoptOpenJDK team is working on a similar package, also offering IcedTea-web.

Overall, it seems that Oracle’s move to charge commercial users for Java might be a good boost for OpenJDK community builds.

Security updates for Java 8 until 2023 and for Java 11 until 2024, are made possible by Redhat taking over the respective OpenJDK Updates projects.

Trigger Camel route from command line

Let’s say we have an Apache Camel route with an entry point like this:

from("direct:start")
    // other route steps

How to trigger “direct:start” from the command line?

Use JMX

The JMX instrumentation agent is enabled in Camel by default.
In Camel 2.9+ no special jars are required for JMX.
For details, see the Camel JMX documentation.

  • Determine the process id of your Camel Java process.
  • Determine which user id your Camel process is running as.
  • Download or build the jmxterm tool. You need the “uber” jar.

On the same computer and as the same user, execute jmxterm like this:

java -jar jmxterm-*-uber.jar -l ${pid} -i jmxterm-script.txt

With a file jmxterm-script.txt like this:

bean org.apache.camel:context=camel-1,name="camel-1",type=context
run sendStringBody "direct:start" ""

This calls sendStringBody(..) on the ManagedCamelContext and triggers the route for you.

Java EE 8 Roadmap and Update from JavaOne 2016

Anil Gaul’s keynote showed a JEE8 plan with new scope and release targets.
Oracle says JEE must adjust to trends like cloud and microservices.

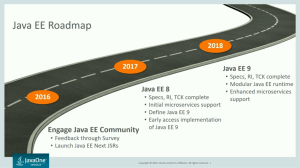

The ambitious roadmap aims for JEE8 release in 2017 and JEE9 in 2018:
jee-roadmap

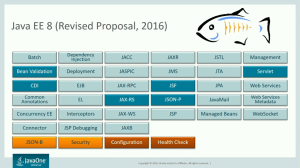

The scope changes include two new JSRs: “Configuration” and “Health Check”:
jee8-revised

Surprisingly, Oracle wants to remove MVC and JMS 2.1 from JEE8 scope.
Allegedly they are “no longer very relevant in the cloud”.
Unfortunately, the roadmap also no longer mentions JCache.

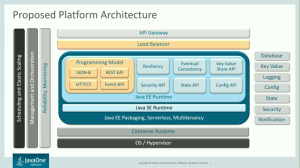

The proposed JEE8 architecture stack is very focused on Java for light-weight web services:
jee8-architecture

More details are in the “Java EE 8 Update” by Linda DeMichiel:

Install portable JDK on Windows without admin rights

I found the basic idea here, the exact steps are:

iron-java-mug_120x120

  1. Install Portable 7zip
  2. Download Oracle JDK installer for Windows (*.exe)
  3. Run 7-ZipPortable.exe from your Portable 7zip
  4. In 7zip find and right-click the jdk installer exe file
  5. From the context menu use 7-Zip – Open Archive and then Extract
  6. Now extract the resulting “tools.zip” to a folder that is writable for you
  7. Open a cmd.exe, cd into the folder and execute this:
for /R %f in (.\*.pack) do @"%cd%\bin\unpack200" -r -v -l "" "%f" "%~pf%~nf.jar"

Kudos to Nick Russler for figuring out this tricky unpack200 command line!

Determine which Tomcat version is running

Determine process id

First we determine the process id(s) of the running Tomcat instance(s).

We can grep the running process list for ‘catalina.home’:

pgrep -f 'catalina.home'

This might yield more than one pid.

Or we can search by port (8080 is the default, adjust if necessary). The following commands will likely require root privileges:

lsof -t -i :8080

Alternatively, for example if lsof is not installed:

fuser 8080/tcp

Or yet another way, using netstat (or its “ss” replacement):

netstat -nlp | grep 8080
ss -nlp | grep 8080

Determine catalina.home

For the process id(s) determined above, we look at process details:

ps -o pid,uid,cmd -p [pidlist] | cat

For each specified pid, this shows the uid (system user) and the full command line of the process.

Typically the command line will contain something like “-Dcatalina.home=[path]” and that path is the catalina.home system property of the Java process.

Alternatively – with Java 7 and later – we can use the JDK command “jcmd” to query the JVM process for its system properties:

sudo -u [uid] jcmd [pid] VM.system_properties \
   | grep '^catalina.home' \
   | cut -f2 -d'='

Determine version

Now we can finally determine which Tomcat version is installed under the catalina.home path:

[catalina.home]/bin/catalina.sh version \
   | grep '^Server number:'

Note: Please replace [catalina.home] with the path you determined above.

The final output should be something like this:

Server number: 7.0.56.0

Continuous delivery using github, travis-ci and bintray

Continuous-Delivery-schema

Let’s say you work on a Java application and want to frequently make it available for download so that user’s can easily try the latest version.

Let’s say you work primarily on your laptop or personal computer using a Java IDE and commit code changes, but you don’t want to spend time manually building jars, packaging war or zip files, testing your application or uploading files to a website, etc.

Instead you want to have a fully automated process that compiles your source code, runs automated tests and other quality control mechanisms, builds your application and uploads the result to a public website.

But you don’t want to install any infrastructure for this and not run anything besides Java and your IDE on your own machine(s).

Basically you want to use developer-friendly reliable cloud services but you don’t want to pay a single cent.

All of this is possible, as long your code is Open Source:

  • Host your source code on github
  • Let travis-ci run vour build process
  • Let travis-ci upload the build result to bintray

For details, you can take a look at one of my github projects.

Relevant config files:
